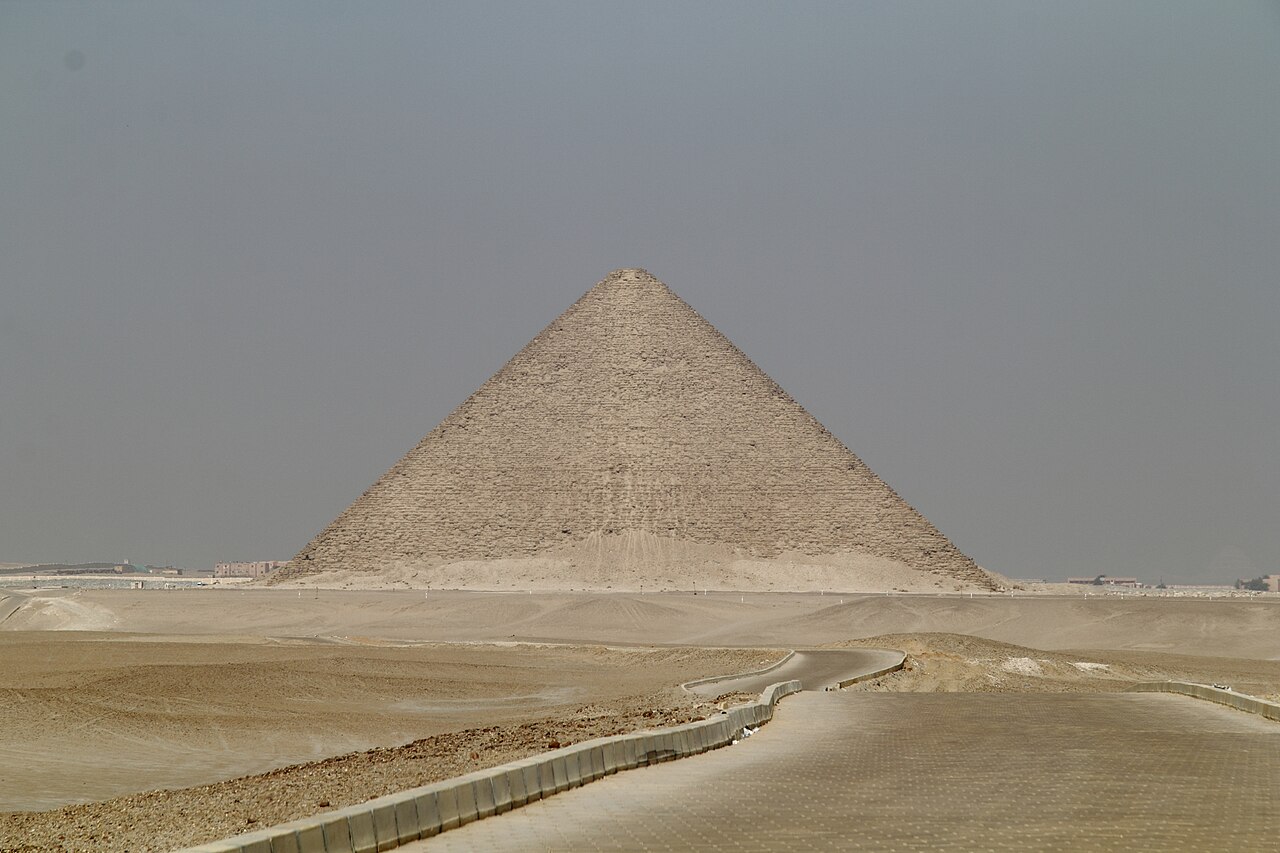

Possible Ancient Dams Near the Red Pyramid May Reveal New Hydraulic Engineering at Dahshur
A new study proposes that two long linear structures near the Red Pyramid at Dahshur in Egypt may not have been transport ramps, as previously suggested, but parts of an ancient hydraulic system.
The structures lie across Wadi Dahshur, west of the Red Pyramid, one of the major monuments built during the reign of King Snefru in the early Fourth Dynasty of Egypt’s Old Kingdom. The site sits between the Nile floodplain and the western desert, in a landscape crossed by dry valleys that may once have carried seasonal runoff during wetter climatic periods.
The study identifies two large structures extending across the wadi, each approximately 600–700 metres long and anchored into the valley sides. Earlier interpretations connected them with quarrying or stone transport for pyramid construction. However, the new analysis suggests that their shape, position, and relationship to the drainage system are more consistent with engineered dams or weirs.
The researchers used satellite imagery, historical maps, aerial photographs, digital elevation models, and watershed analysis to reassess the landscape. They also compared the Dahshur structures with known ancient Egyptian hydraulic works, including the Sadd el-Kafara dam, located east of Dahshur, which is often considered one of the oldest large dams in the world.
According to the study, the eastern structure may have functioned as a main water-retention dam. The western structure may have acted as a check dam, helping to trap sediment and regulate water flow. The space between the two structures could have served as an intermediate basin, slowing floodwater and reducing erosion before water moved farther downstream or into a diversion channel.
One of the most striking features is a possible duckbill-shaped weir in the western structure. In modern hydraulic engineering, such a form increases the effective length of a spillway, allowing more water to pass safely during flood events. If confirmed archaeologically, this would represent an exceptionally early example of a sophisticated overflow design.
The study also identifies a possible diversion channel running near the Red Pyramid. Historical maps and topographic data suggest that this channel may have extended for hundreds of metres before turning eastward and reconnecting with an ancient wadi bed. Its regular alignment and proximity to the pyramid raise the possibility that water control formed part of the wider construction landscape.
The proposed hydraulic system may have had several functions. It could have helped manage flash floods, reduce sediment movement, store or divert seasonal water, and possibly support activities connected with pyramid construction. A controlled water supply may have assisted with transport, workforce provisioning, mortar preparation, dust control, or other construction-related tasks.
The researchers also discuss the wider climatic context. During the early Old Kingdom, Egypt was becoming drier than in earlier Holocene periods, but rainfall may still have been higher and more variable than today. Rare but intense storms could have produced flash floods in desert wadis, making flood control and water storage important concerns for major construction zones.
The study suggests that Wadi Dahshur may have been connected, at least potentially, to a much larger drainage network linked to Wadi Taflah. If water from this larger catchment could be diverted toward Dahshur, the available water resource may have been far greater than that provided by the small local wadi alone.
However, the authors emphasize that the interpretation remains a hypothesis. The structures have not yet been excavated, and much of the area is difficult to access because it lies within a restricted military zone. Future archaeological excavation, sediment analysis, and dating are needed to determine whether the structures were truly dams, when they were built, and how they functioned.
If confirmed, the findings would add an important new dimension to our understanding of Old Kingdom engineering. They would suggest that water management beyond the Nile floodplain played a larger role in pyramid landscapes than previously assumed.
Rather than viewing pyramid construction only through the movement of stone and labour, the Dahshur evidence invites researchers to consider water control, flood management, and landscape engineering as part of the technical world of ancient Egyptian pyramid building.
Published on: 20-07-2026
Edited by: Abdulmnam Samakie
Source: npj Heritage Science
